鋁帶曲線穿過一座墨西哥城建筑——Belzberg Architects
Aluminium strips curve through Mexico City building by Belzberg Architects

由專筑網王帥，李韌編譯

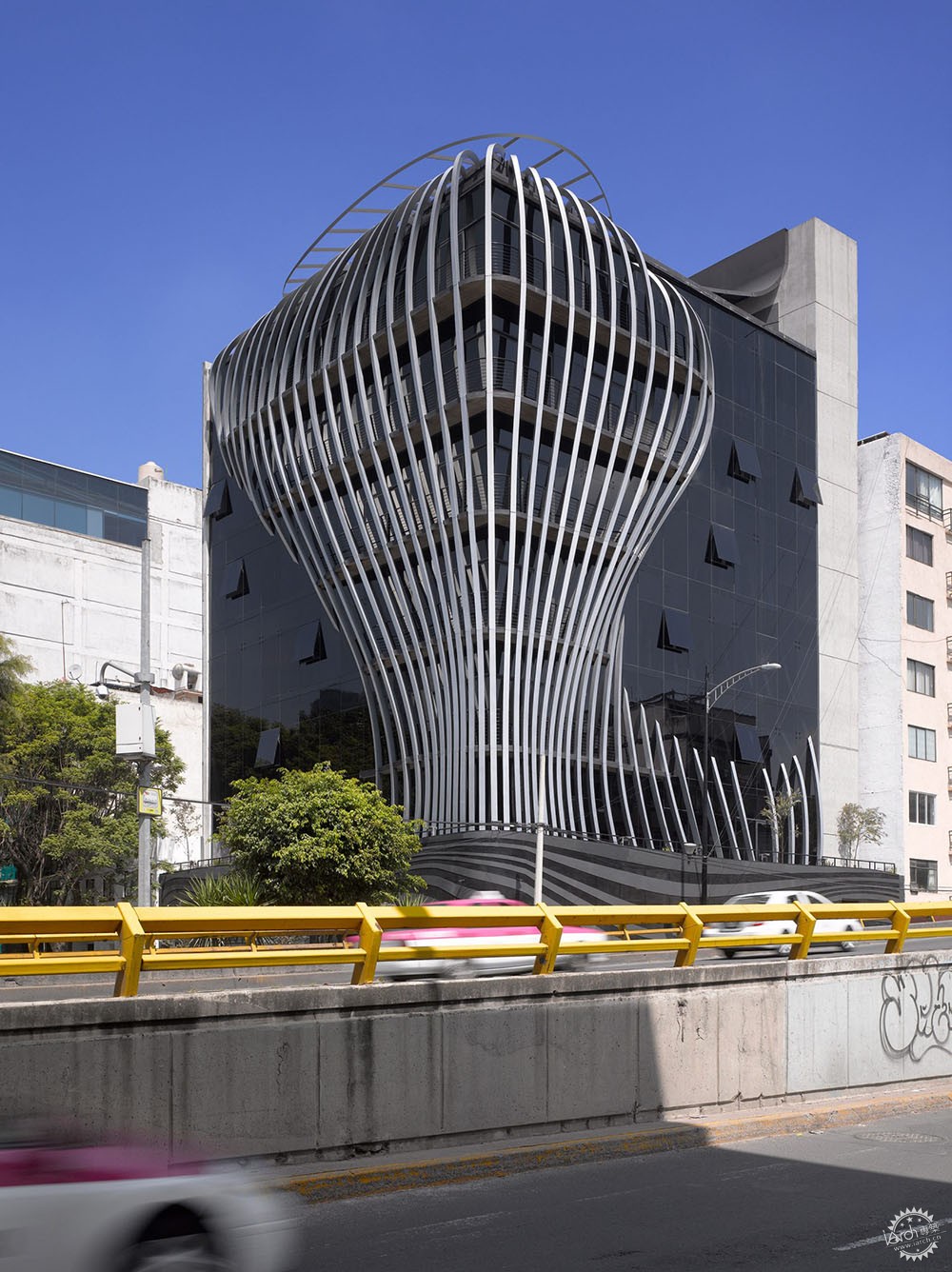

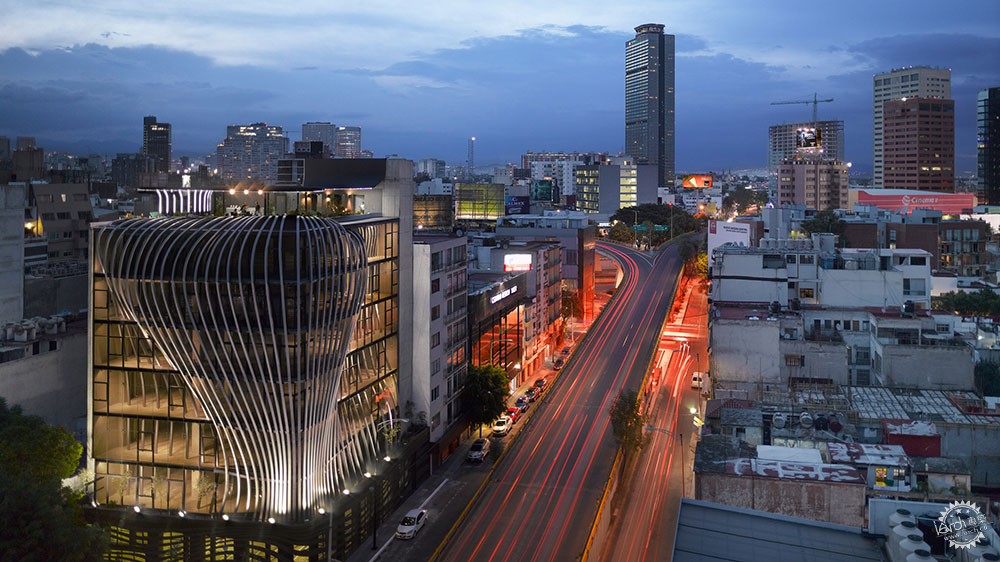

美國加州Belzberg建筑事務所在墨西哥城的一棟辦公樓外部包裹了豎直的鋁帶，這些鋁帶延續到建筑內部，形成了各種功能空間。

California firm Belzberg Architects has wrapped vertical aluminium strips around the outside of an office building in Mexico City, which continue inside to form various nooks and private areas.

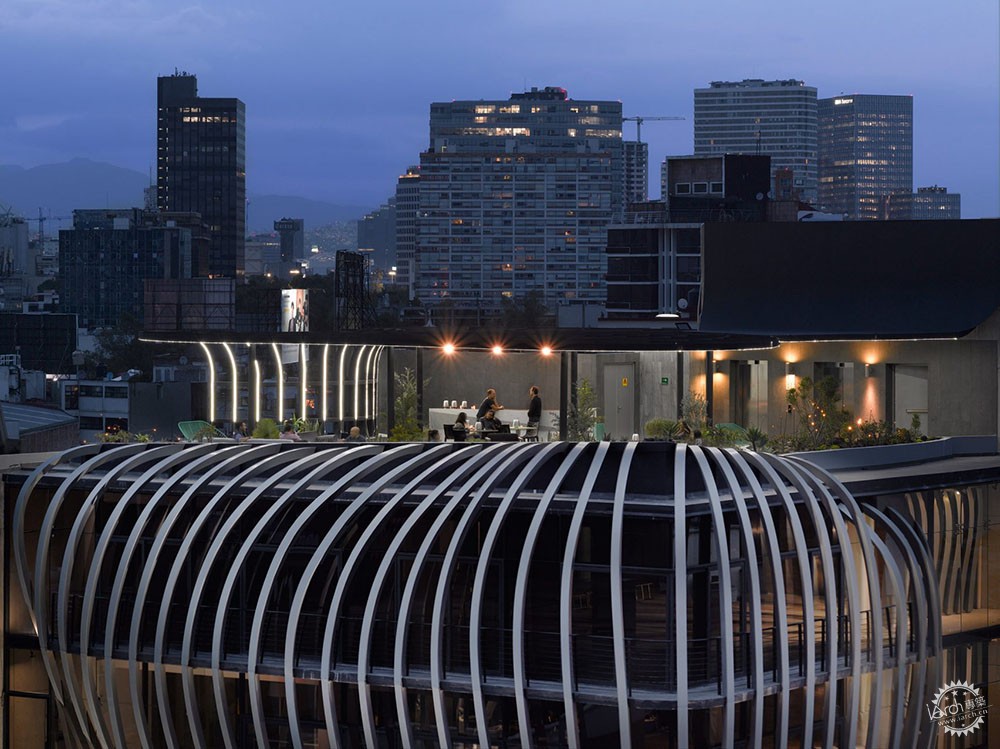

這座建筑的外表面覆蓋著玻璃，建筑的面積為43,852平方英尺（約4074平方米），跨越六層的高度，包括屋頂露臺和地下停車場。

Belzberg建筑事務位于圣莫尼卡，采用一套在加利福尼亞定制的曲線型鋁條來完成這個結構。

Measuring 43,852 square feet (4,074 square metres), the glass-covered building spans six storeys and includes a rooftop patio and underground parking. It was created for the Latin American headquarters of French beverage company Pernod Ricard.
Based in Santa Monica, Belzberg Architects used a set of curving aluminium strips that were custom-made in California to frame the structure.

工作室負責人表示：“我們將這座六層樓突出的拐角作為一個節點，探索兩個臨街面的功能和形式。我們?cè)诒３肿畲髽敲婷娣e使用率的同時，創建了一個流暢的宜居室內空間，柔化建筑過于硬朗的幾何線條。”

"We used the prominent corner siting of this six-storey building as a prompt to explore the function and form of its two street-facing elevations," said the studio. "While maintaining the maximum useable floor area, we created a fluid, habitable facade that counteracts the project's otherwise rectilinear geometry."

這棟名為“Threads”的建筑位于墨西哥城歷史悠久的庫奧特莫克（Cuauhte?moc）街區，如今，該地區正在經歷舊區更新，新建了公寓和辦公樓。

Titled Threads, the building is located in Mexico City's historic Cuauhte?moc neighbourhood – an area now undergoing revitalisation with newly built condominiums and offices.

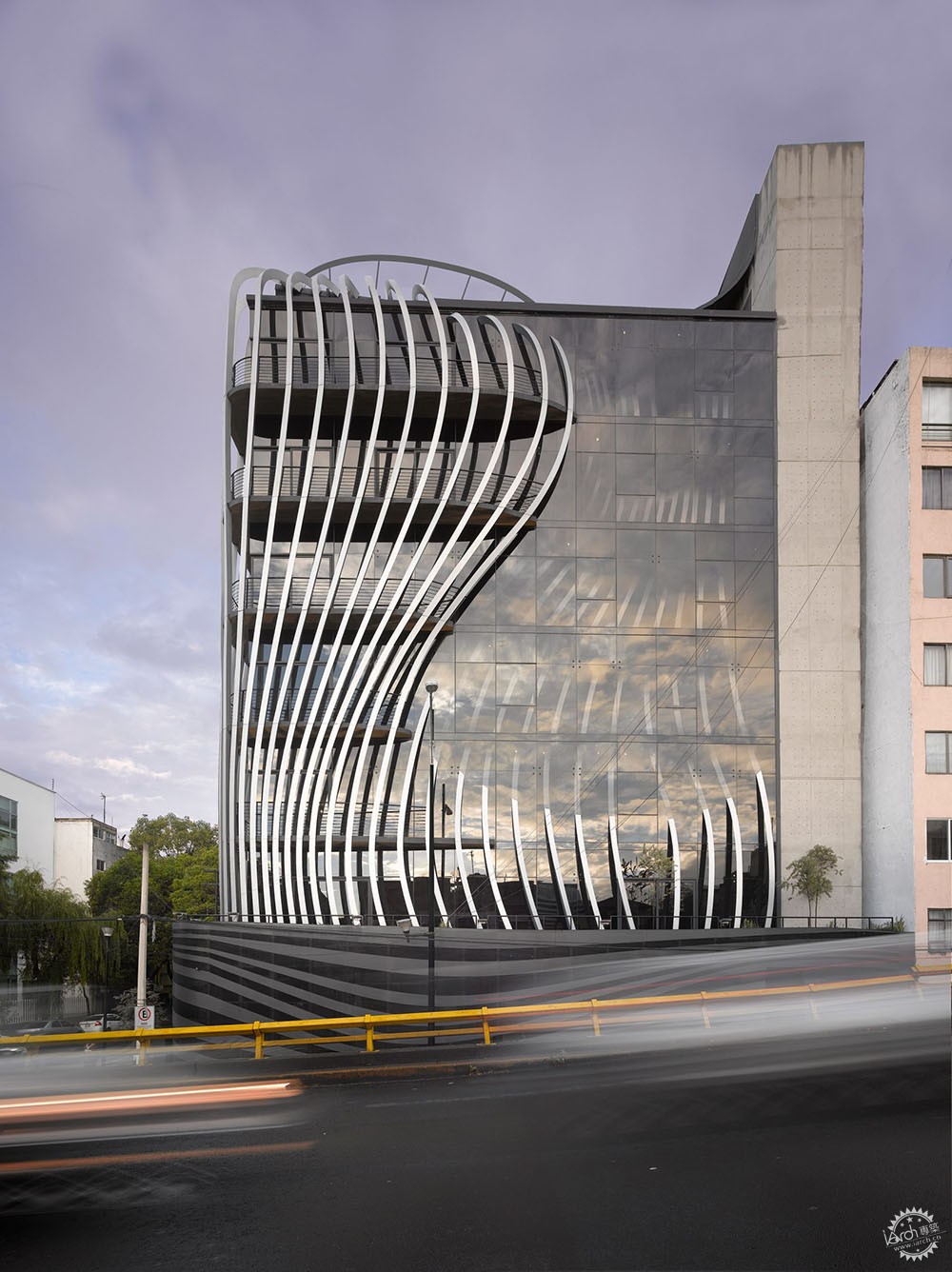

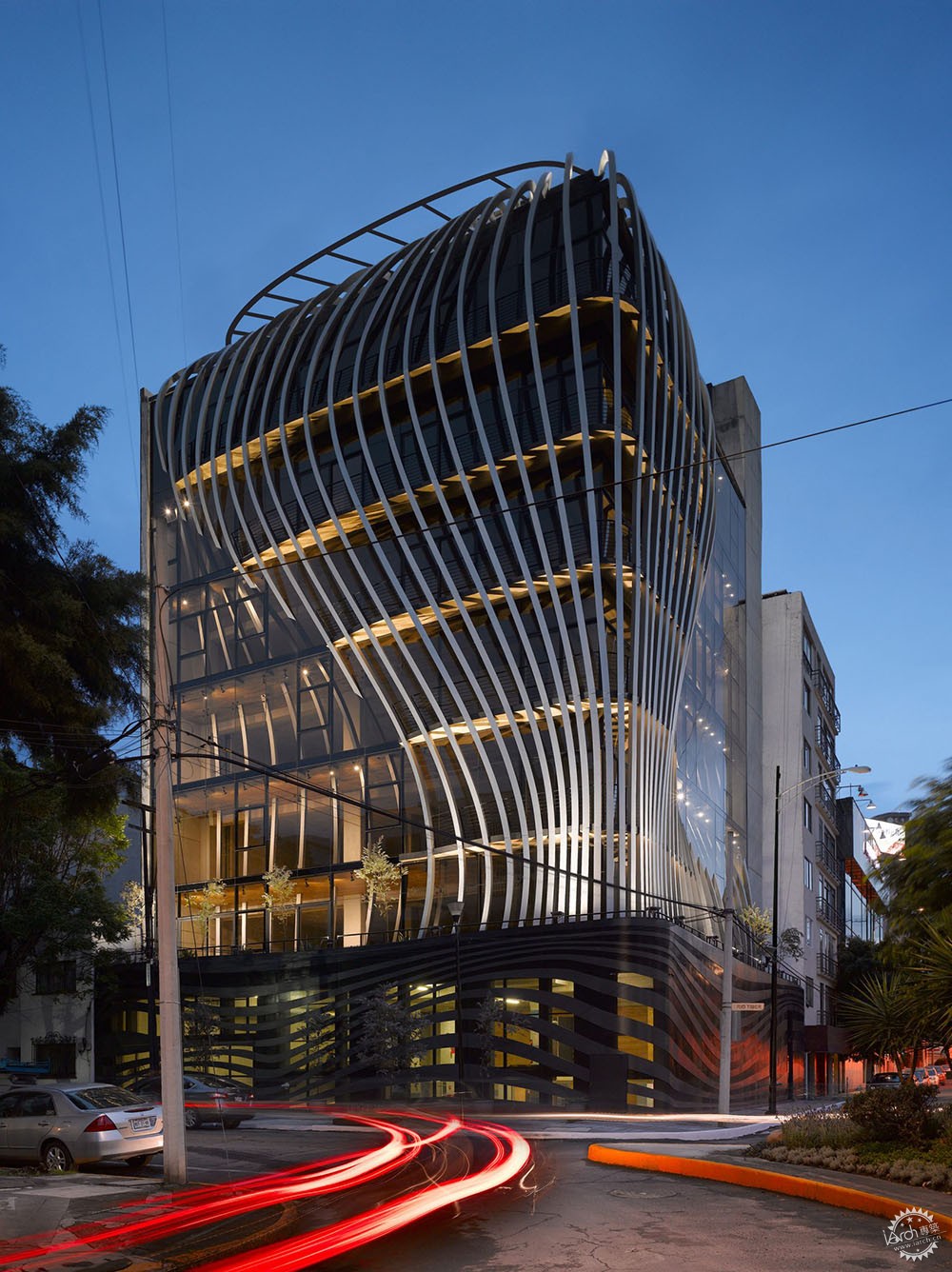

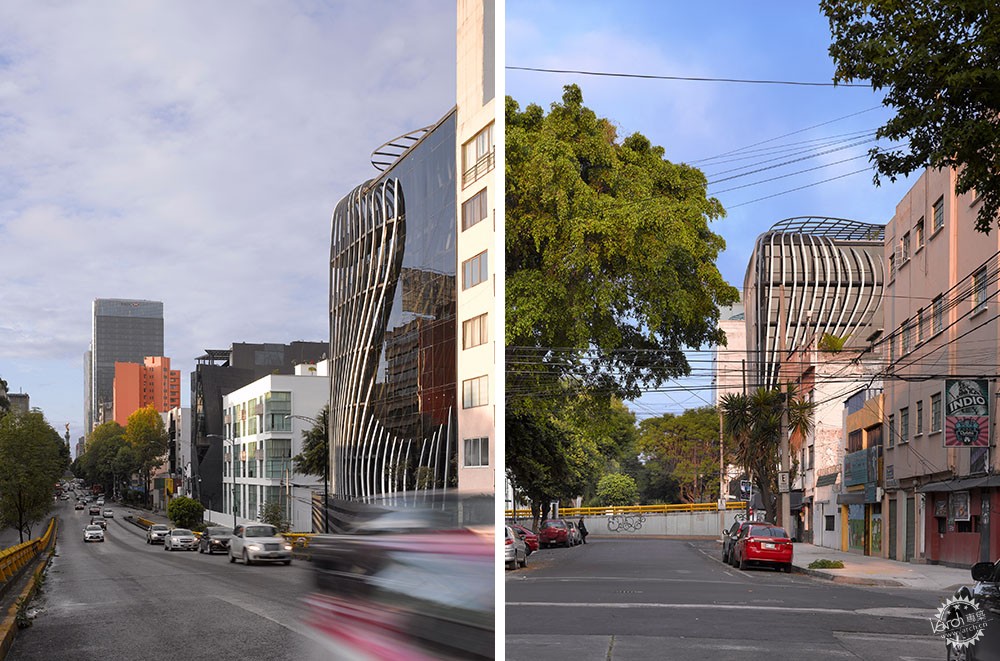

這座建筑的外觀因覆蓋了暗色玻璃和金屬制品，使得它在周圍的混凝土建筑中脫穎而出，然而，曲線鋁條又為原本方正的建筑帶來一大特色。灰色的層壓玻璃窗為室內隔絕多余熱量，同時提高了室內的能見度。

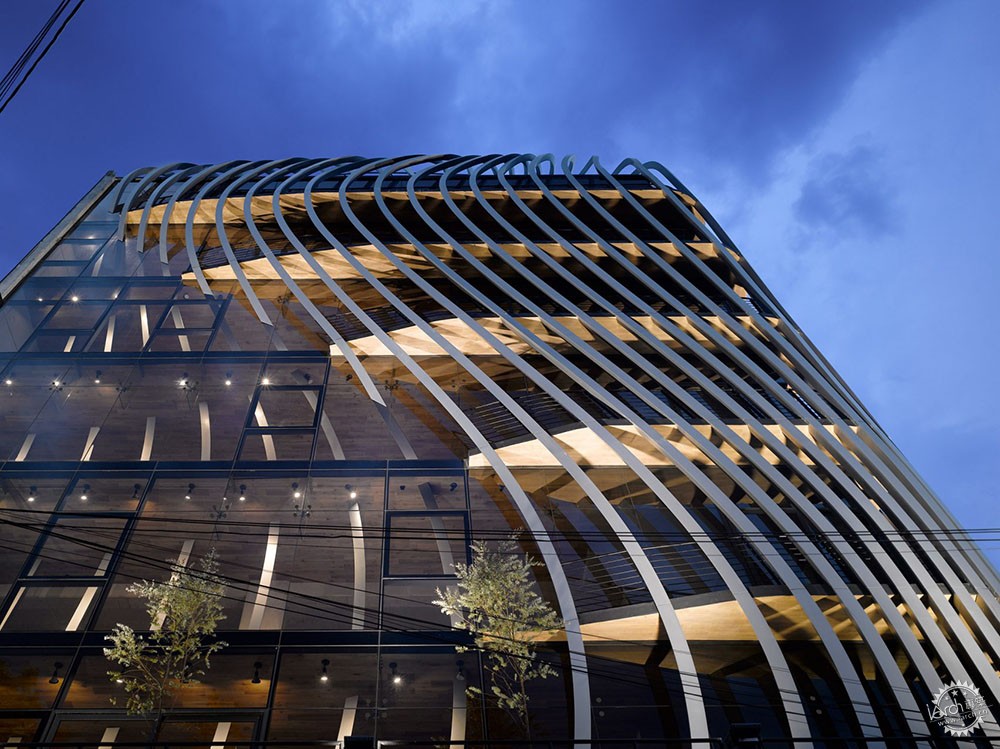

272個特制的彎曲鋁“鰭”附著在建筑上，形成一大亮點。這些復雜的結構件制作采用了數字制造，由Belzberg建筑事務所監制。

Covered in dark glass and metalwork, the building stands out from the surrounding concrete blocks, yet its curvy lines offer visual interest across its otherwise boxy design. Laminated grey windows reduce heat gain, as well as improve interior visibility during the day.
In total, 272 uniquely curved aluminium "fins" are attached to the construction, forming a large focal point. Digital fabrication was used to make these intricate structural pieces, which Belzberg Architects closely monitored.

事務所負責人表示：“每個鋁帶之間的最大間距是1/4英寸（約0.63厘米），目的是保持線條之間的連續性，設計中跨越七個連接點（即一次垂直交叉穿過六層），總的容許誤差只有三英寸（約7.6厘米）?！?/span>

"The maximum gap between each portion is a 1/4 inch (0.63 centimetres), to maintain the appearance of a continuous vertical line," said the firm. "The design allowed for a total of only three inches of tolerance across seven connection points (ie as a single vertical crossing six floors)."

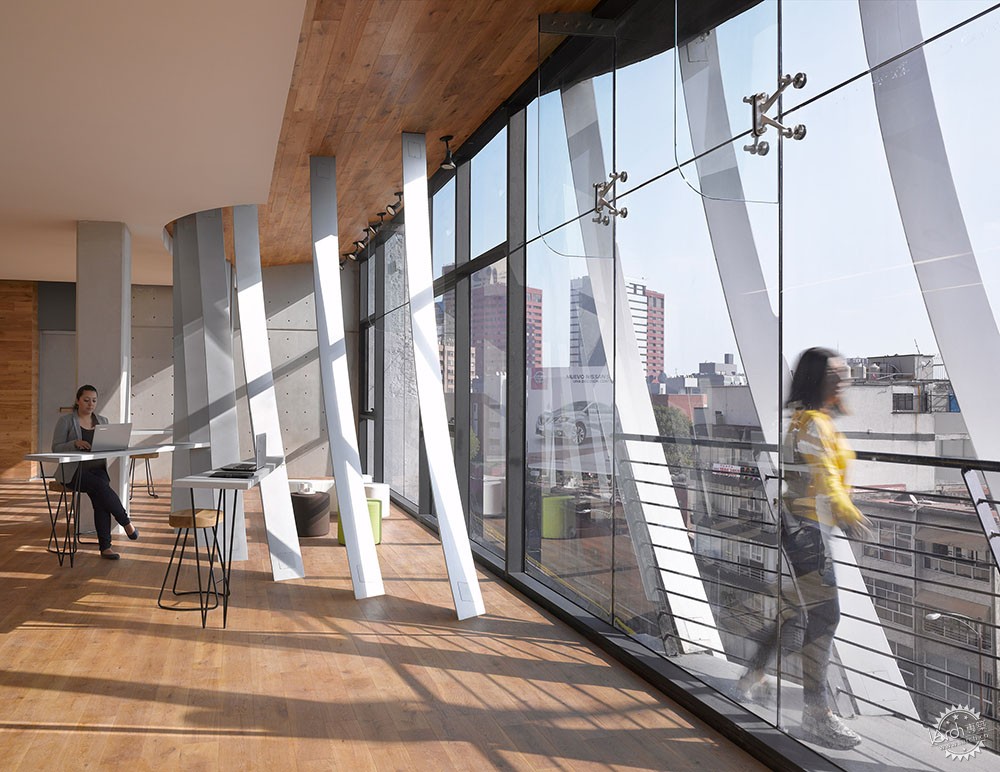

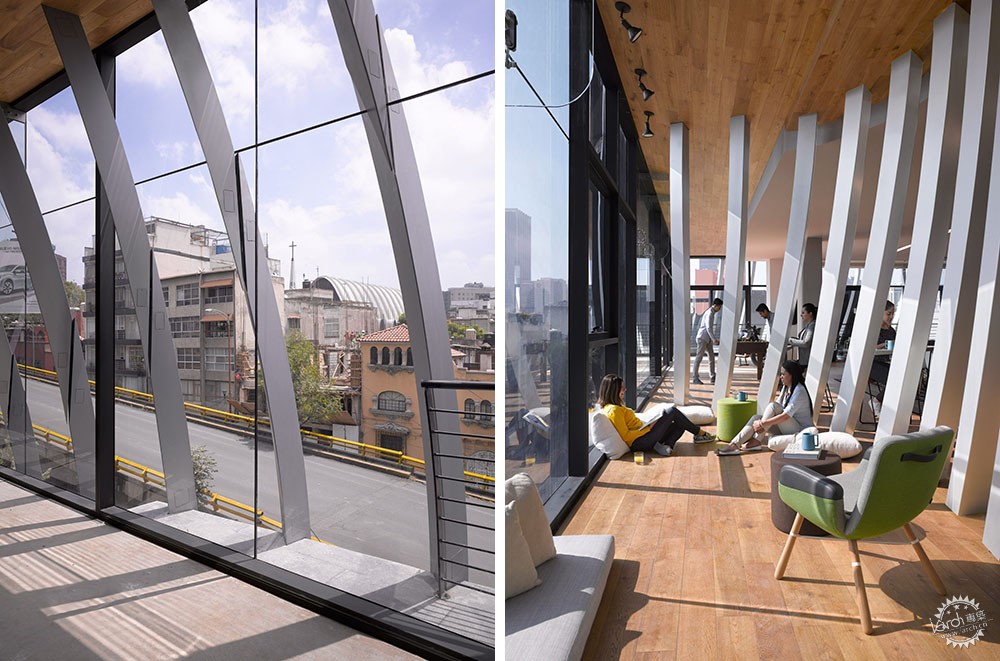

在建筑內部，這些銀色的線條也被納入布局，形成了工作空間和休息場所。地板和天花板采用了淺色木材，而其他墻壁表面運用暴露的混凝土、白色噴漆及木飾面。

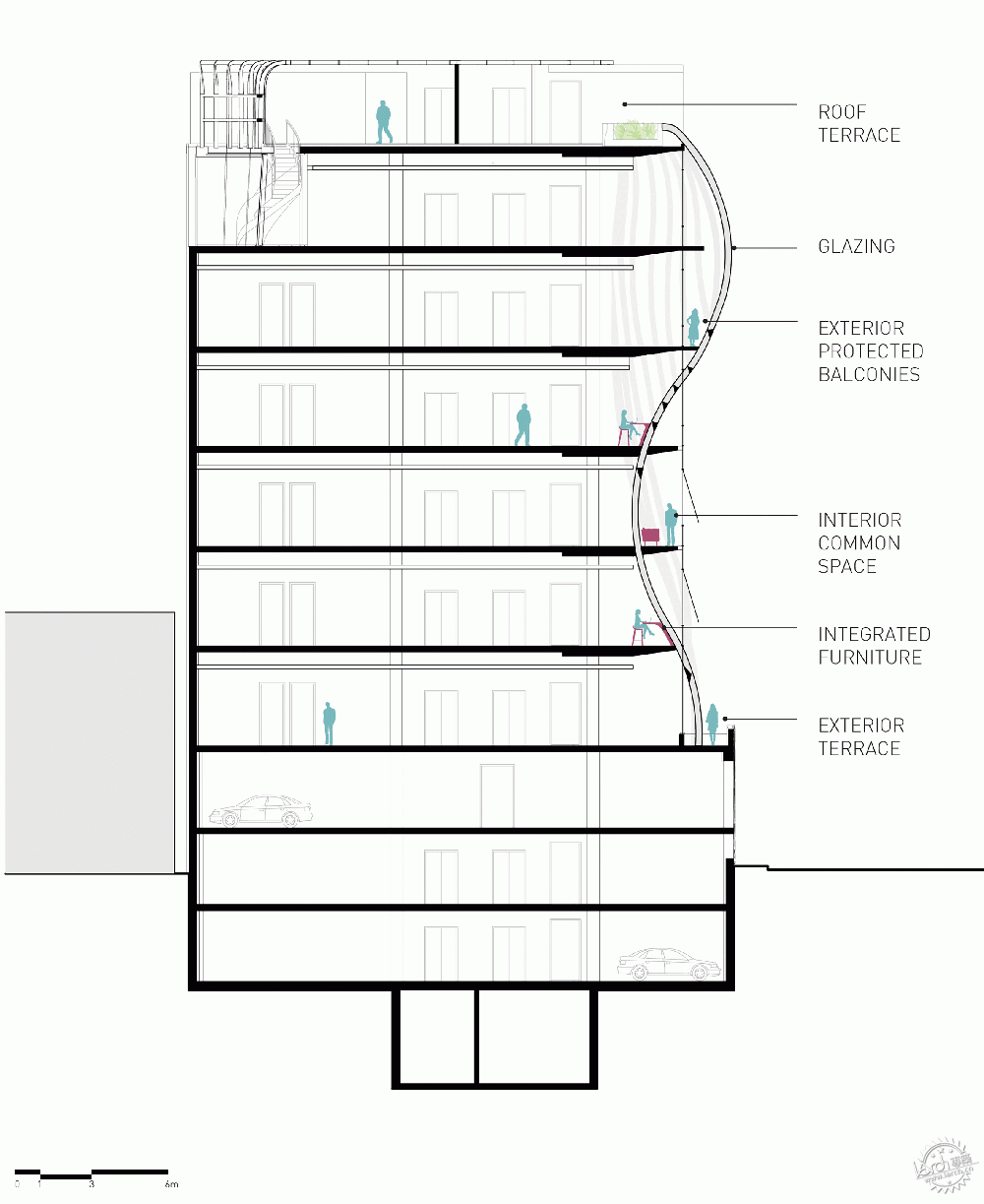

外部鋁帶也形成了室外門廊，并在四個角落構成半包圍形態的陽臺。

Inside, these silvery strips are incorporated into the layout to form private spaces for working and relaxing. Lightly stained wood covers the floors and ceilings, while other walls include exposed concrete, white-painted, or matching wood finishes.
Outdoor porches are also formed from the external aluminium strips, which create semi-protected balconies on the four corners.

工作室負責人表示：“建筑內外部空間之間的聯系促進了建筑與其所屬社區之間積極的互惠關系。”

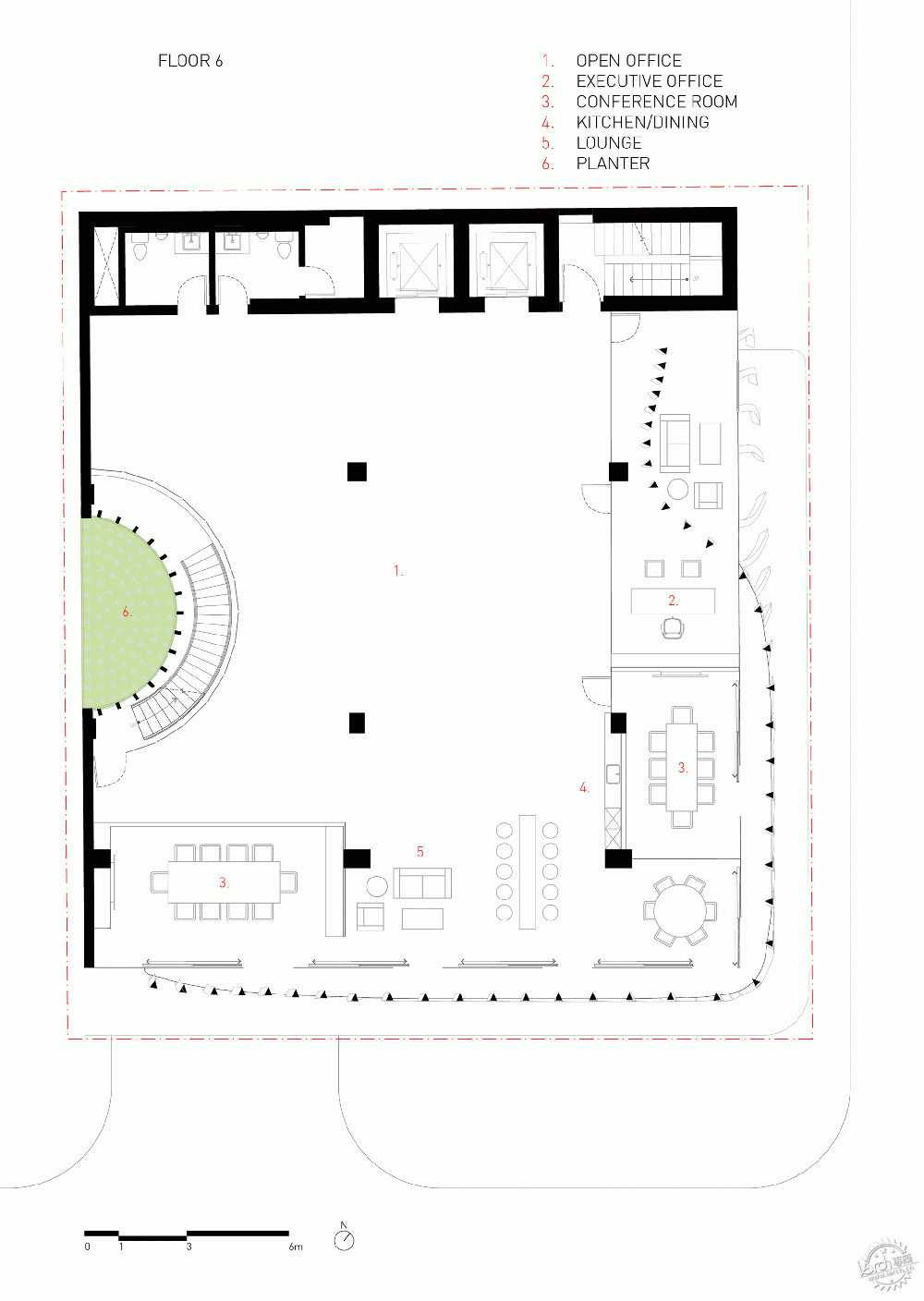

建筑內部的布局圍繞街景而設計，從而最大限度地利用景觀視野。這棟樓的電梯、樓梯和洗手間則主要設置在建筑后側。

"This link between the internal and external experience of the building from the street fosters a positive reciprocal relationship between the building and the community to which it belongs," said the studio.
The layout inside is designed around the corner street views, to maximise areas for looking out across the neighbourhood. An elevator, staircase, and restrooms are all positions along the back edge of the building.

Belzberg建筑事務所成立于1997年，以Hagy Belzberg為主要負責人，該事務所在墨西哥城用混凝土建造了烹飪學校，該項目為當?shù)鬲q太人社區而設計。

攝影：Roland Halbe

Founded in 1997, Belzberg Architects is led by Hagy Belzberg and has also built a cooking school in Mexico City constructed of concrete, and designed for the local Jewish community.
Photography is by Roland Halbe.

項目信息：
建筑團隊：Hagy Belzberg、Brock DeSmit、Kris Leese、Cory Taylor、Ashley Coon、Elizabeth Lee和Annie Mak
結構、機械、電氣和采油工程師：Arup
總承包商：Grupo Anima
立面制造商：LNI Custom Manufacturing

Project credits:
Architecture team: Hagy Belzberg, Brock DeSmit, Kris Leese, Cory Taylor, Ashley Coon, Elizabeth Lee and Annie Mak
Structural, mechanical, electrical and plumping engineer: Arup
General contractor: Grupo Anima
Facade fabricator: LNI Custom Manufacturing
